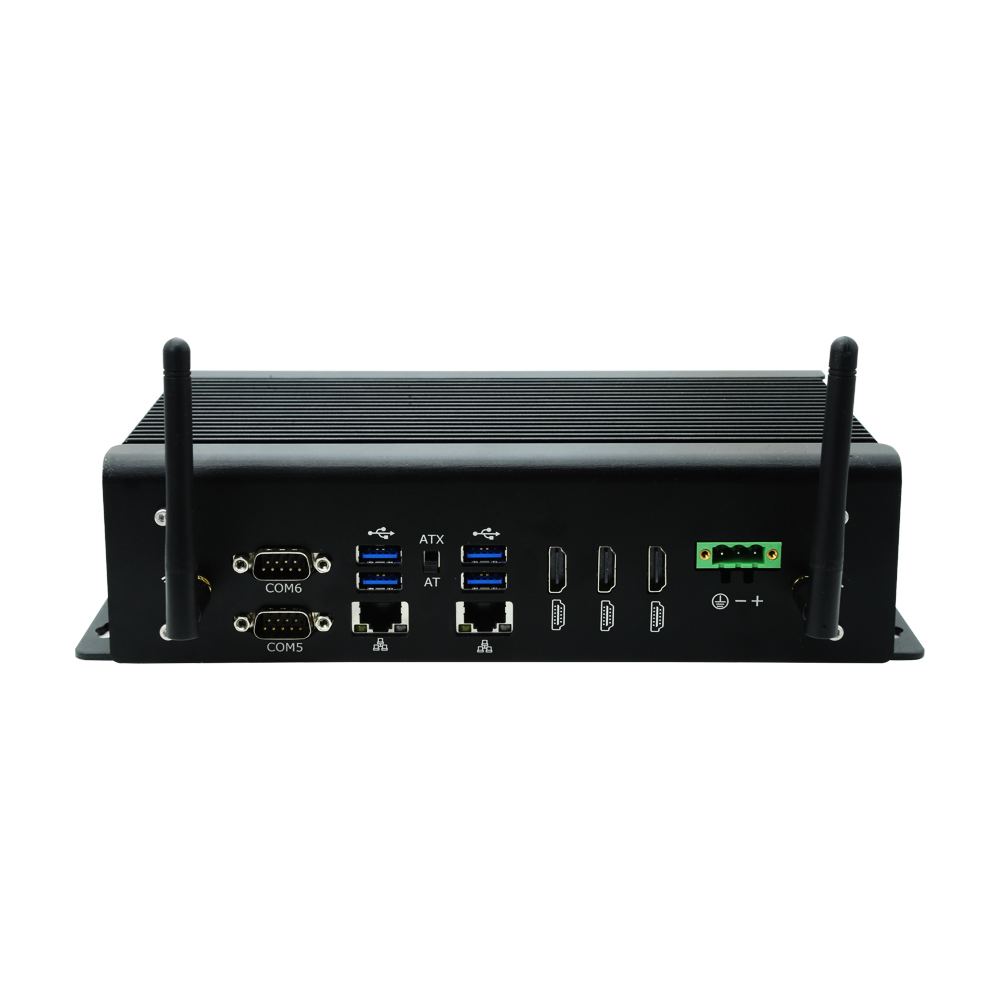

3HDMI Industrial PC GT1200

Industrial Computers are ruggedly designed to smoothly integrate into connected industrial automation control systems. 
Fanless design and rich I/O compatibility present durable, scalable industrial IoT compute solutions for faster processing and connectivity. 
Applications include industrial robotics, factory automation, defense, maritime, surveillance, smart city, and more

ꄴPrevious： 3HDMI Industrial PC GT1200

ꄲNext： Dual LAN Industrial PC GT1200

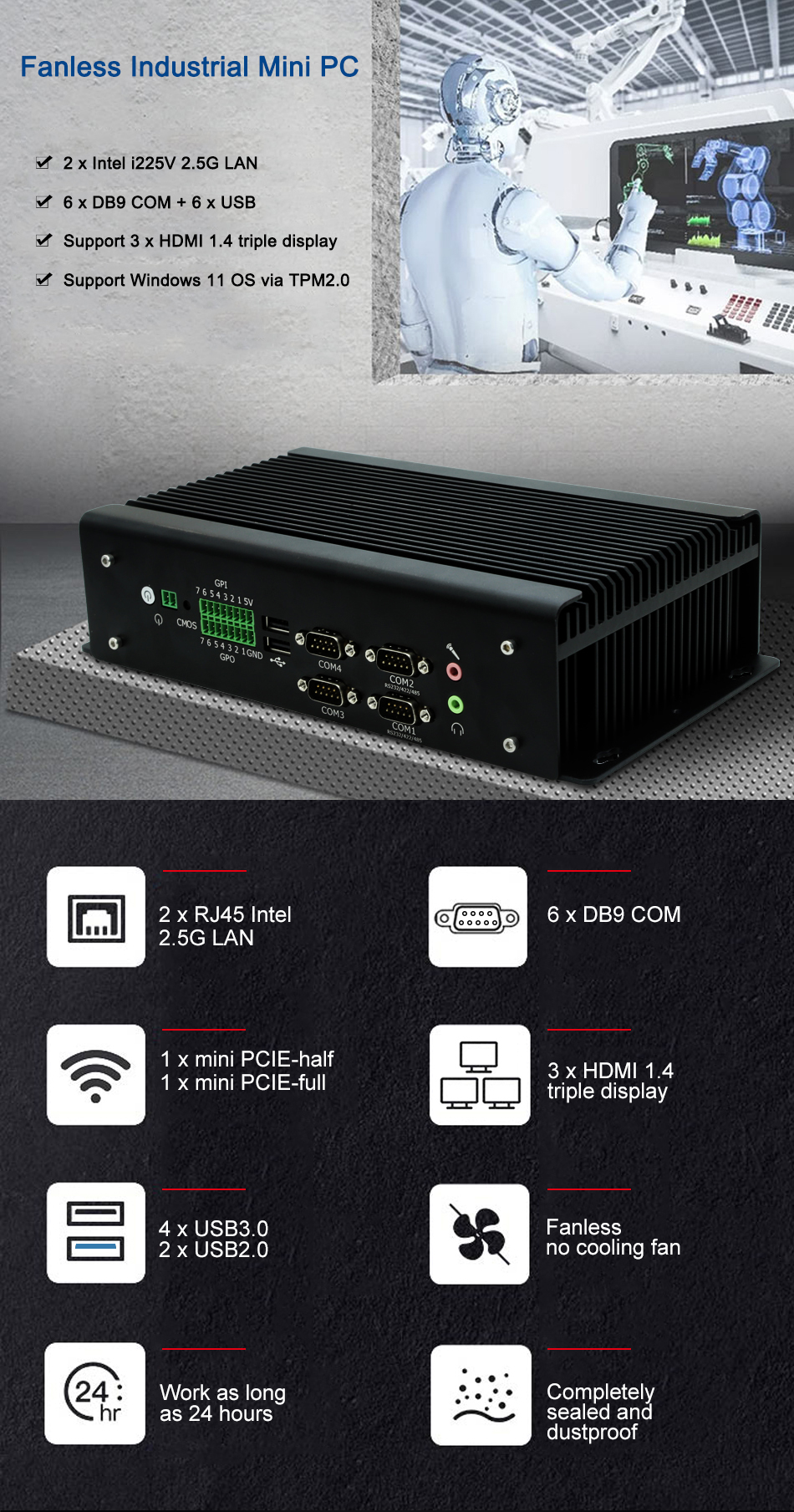

Products Features

- Optional Intel 8th/9th/10th generation H-series core i5/i7 CPU.
- 2 x Intel i225V 2.5G LAN and 6 x RS232 COM(2 x COM can change to RS232/485/422 from BIOS)
- Support 3 x HDMI 1.4 three display output synchronously.
- Support 2 x DDR4 RAM slot, max 64GB DDR4 RAM.

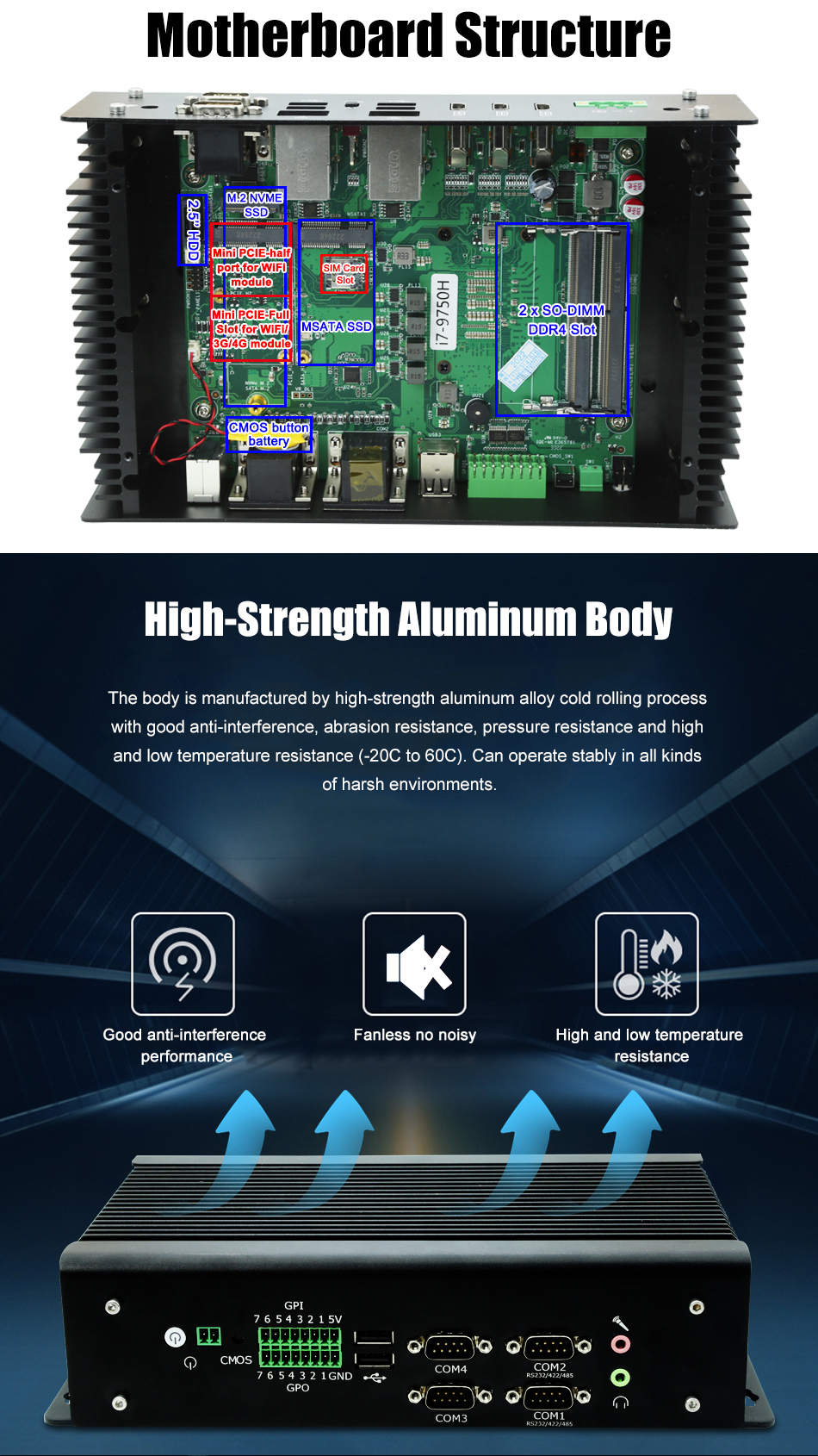

- Full Aluminum Alloy Black color shell for heat dissipation, Exquisite production crati on
outside design.
- Fanless system without cooling fan, fit for industrial grade field, work as long as 24 hours.
- Installation: support desktop and wall-mounted.

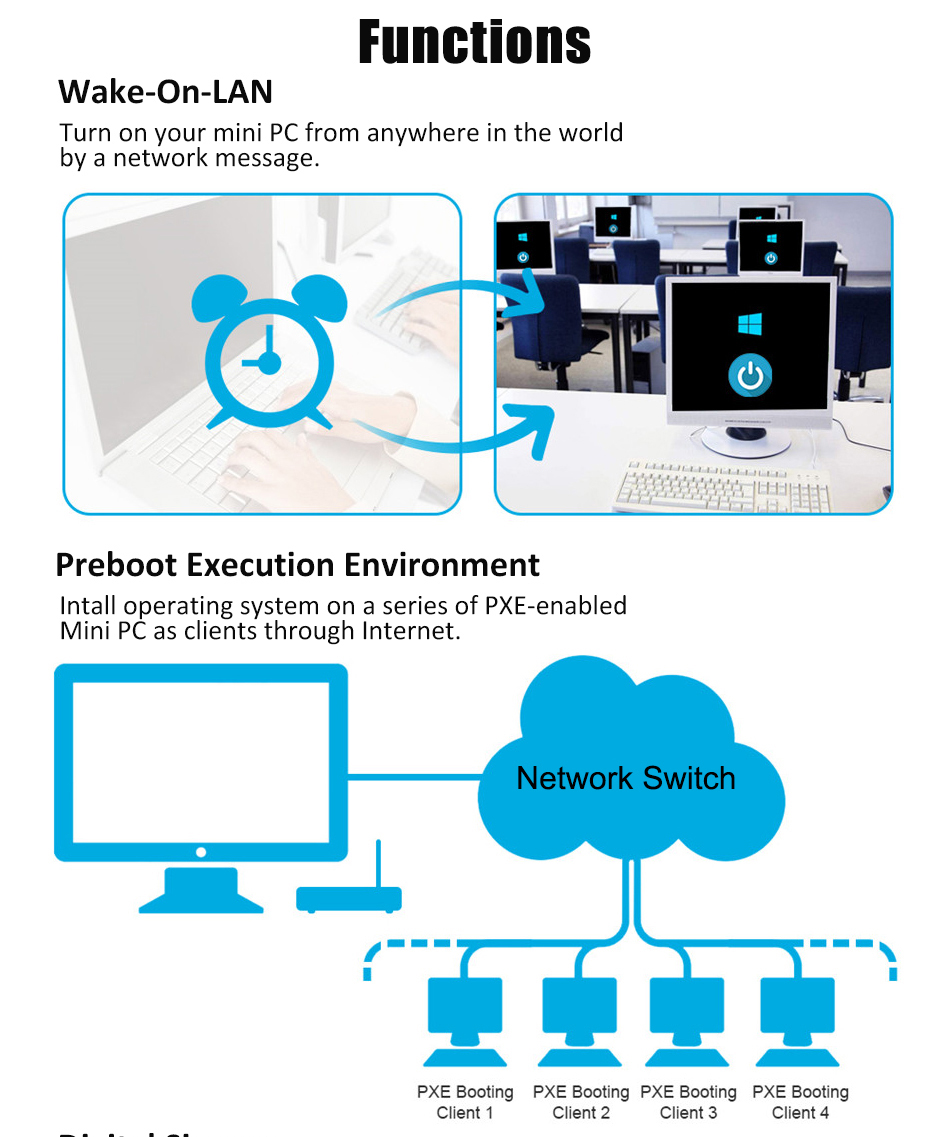

- Functions: AWAL, Wake On LAN, RTC, Watchdog

Products Specification

Basic Information:
CPU	1.Onboard Intel Coffee Lake 14nm CPU Intel Core i5-8400H 2.5GHz Max 4.2GHz (Turbo boost Technology) Four Cores Eight Threads 8MB cache TDP 45W Intel® UHD Graphics 630.
	2. Onboard Intel Coffee Lake 14nm CPU Intel Core i7-8750H 2.2GHz Max 4.1GHz (Turbo boost Technology) Six Cores Twelve Threads 9MB cache TDP 45W Intel® UHD Graphics 630.
	3.Onboard Intel Coffee Lake 14nm CPU Intel Core i5-9400H 2.5GHz Max 4.3GHz (Turbo boost Technology) Four Cores Eight Threads 8MB cache TDP 45W Intel® UHD Graphics 630.
	4.Onboard Intel Coffee Lake 14nm CPU Intel Core i7-9750H 2.6GHz Max 4.5GHz (Turbo boost Technology) Six Cores Twelve Threads 12MB cache TDP 45W Intel® UHD Graphics 630
	5.Onboard Intel Comet Lake 14nm CPU Intel Core i5-10200H 2.4GHz Max 4.1GHz (Turbo boost Technology) Four Cores Eight Threads 8MB cache TDP 45W Intel® UHD Graphics.
	6.Onboard Intel Comet Lake 14nm CPU Intel Core i7-10750H 4.8GHz Max 5.0GHz (Turbo boost Technology) Six Cores Twelve Threads 12MB cache TDP 45W Intel® UHD Graphics
TDP	Refer to the above CPU
Chipset	SOC
Memory	2 x SO-DIMM DDR4 Slot Support 4GB/8GB/16GB/32GB/64GB
OS	Windows 10, Windows 11, WES 10, Linux
Audio	Intel high definition audio controller
Network	2 x Intel(R) i225V Gigabit Network Connection 10/100Mbps/1000Mbps BaseT LAN
Video	Refer to the above CPU
Storage:
Msata	1 x M-SATA3.0 slot for MSATA SSD, support 6Gb/s
SSD	1 x M.2 slot for NVME 2280 SSD
SATA	1 x SATA3.0 slot for SATA HDD or SSD, support 6Gb/s
Wi-Fi:
Module	1 x mini PCIE-full/mini PCIE-half port for Wi-Fi/Bluetooth module 1 x mini PCIE-half/full port for 3G/4G module
Antenna	2 x inner RF cables and 2 x external antennas

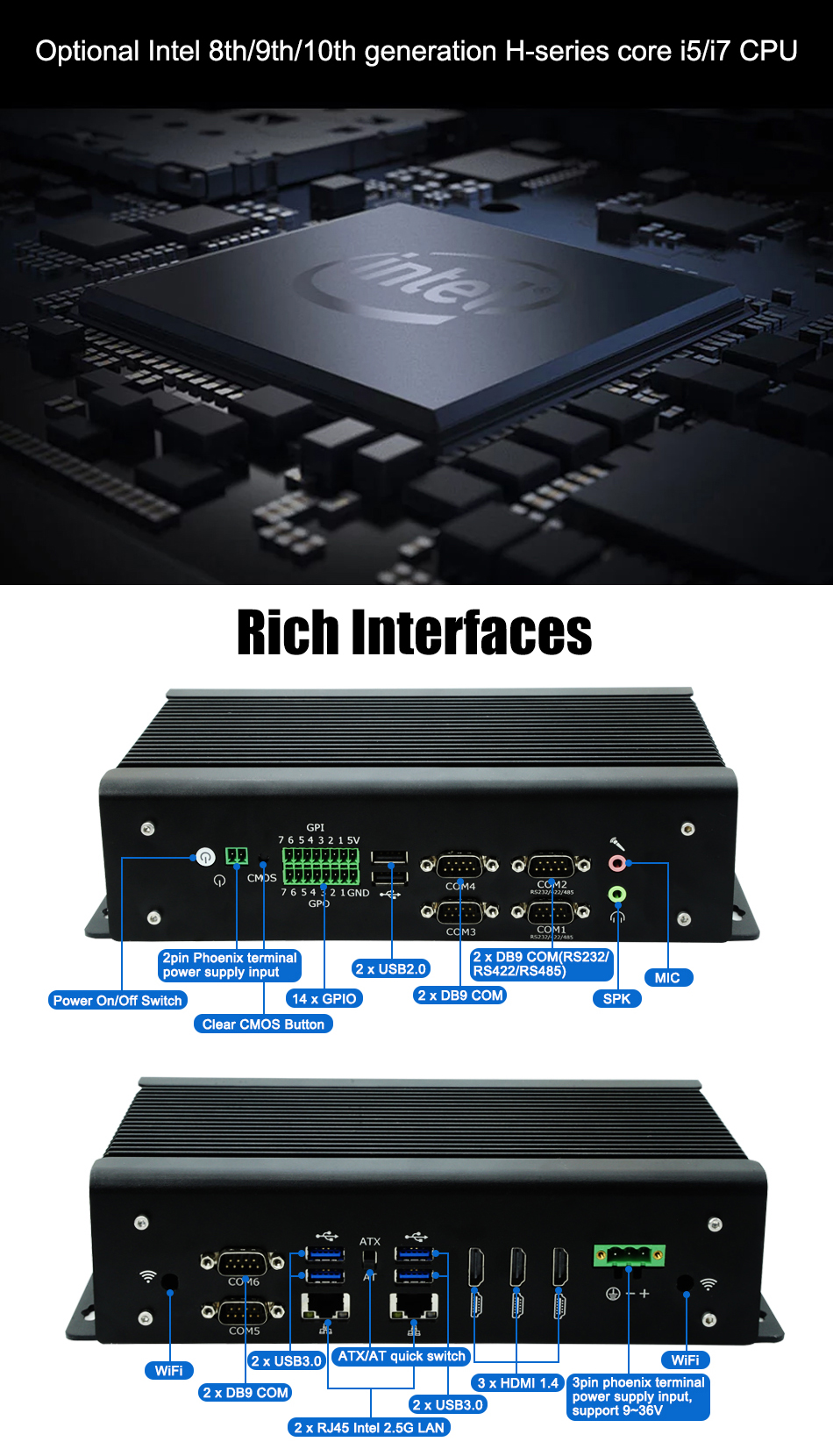

Input/output port：
Switch	1 x Power On/Oﬀ Switch
Power	1 x 3pin phoenix terminal power supply input, support 9~36V
Buttom	1 x ATX/AT quick switch
COM	6 x DB9 COM(2xCOM support RS232/RS422/RS485)
USB	4 x USB2.0, 2 x USB3.0
GPIO	1 x GPIO( 7pin input, 7pin output)
Display	3 x HDMI 1.4
LAN	2 x RJ45 Intel 2.5G LAN
4G Module	1 x mini PCIE-full port for 3G/4G module
SIM	1 x embedded SIM card slot onboard
Audio	1 x MIC, 1 x SPK
Others	1 x CMOS clear button, 1 x 2pin phoenix terminal power supply input
Power and Working Environment:
Input		DC100-240V AC/50-60Hz
Output		9V~36V
Operating Temperature		-20°C/+60°C Centigrade
Storage Temperature		-30/+70 Centigrade
Relative Humidity		10%~90%@30°C(non-condensing)
Product Dimension & Details:
Functions	AWAL, Wake On LAN, RTC, Watchdog

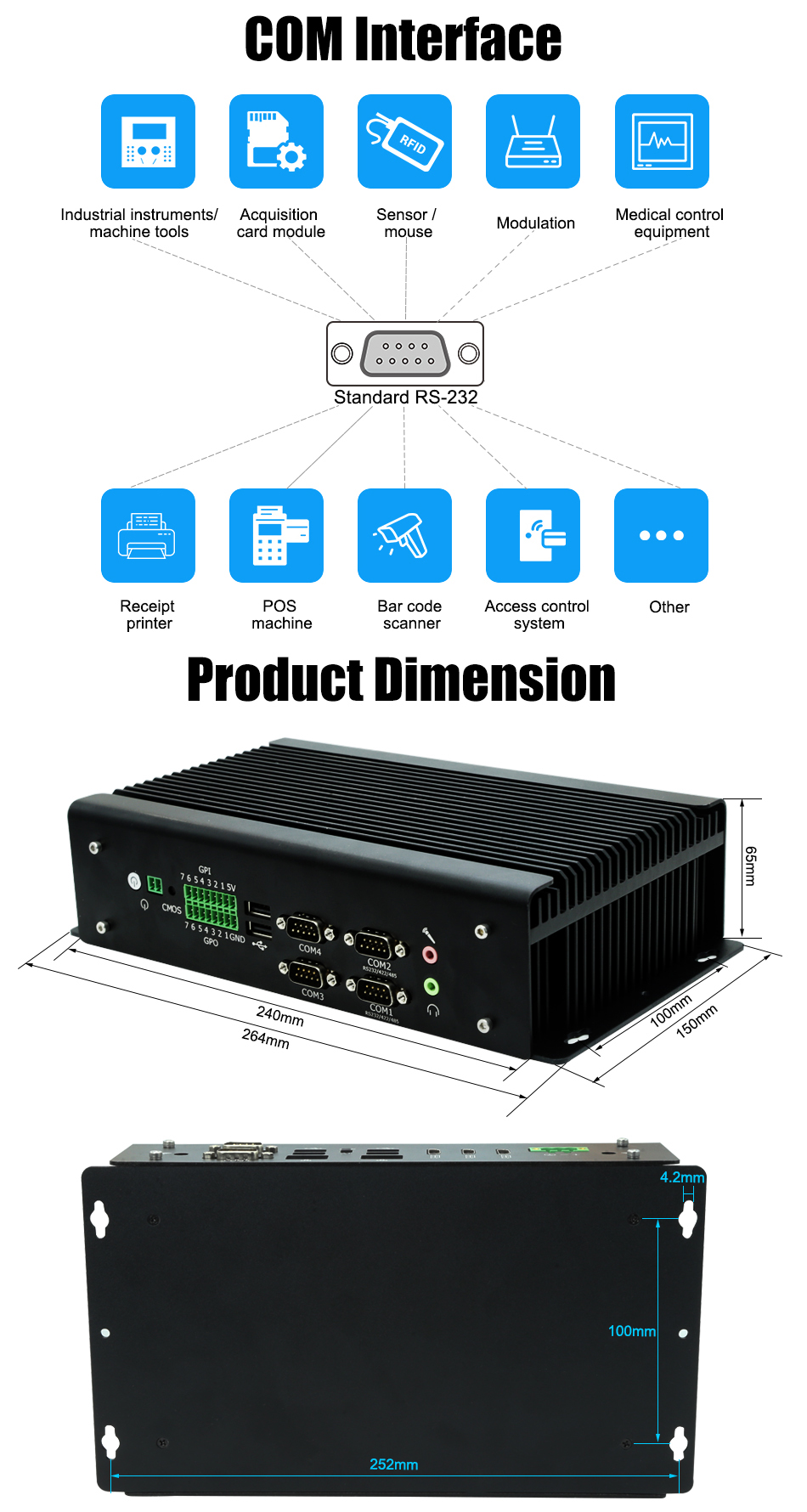

Size	24015065mm
Weight	Net 2kg, Gross 2.5kg
Shell	Black color aluminum alloy(any customized color for bulk order)

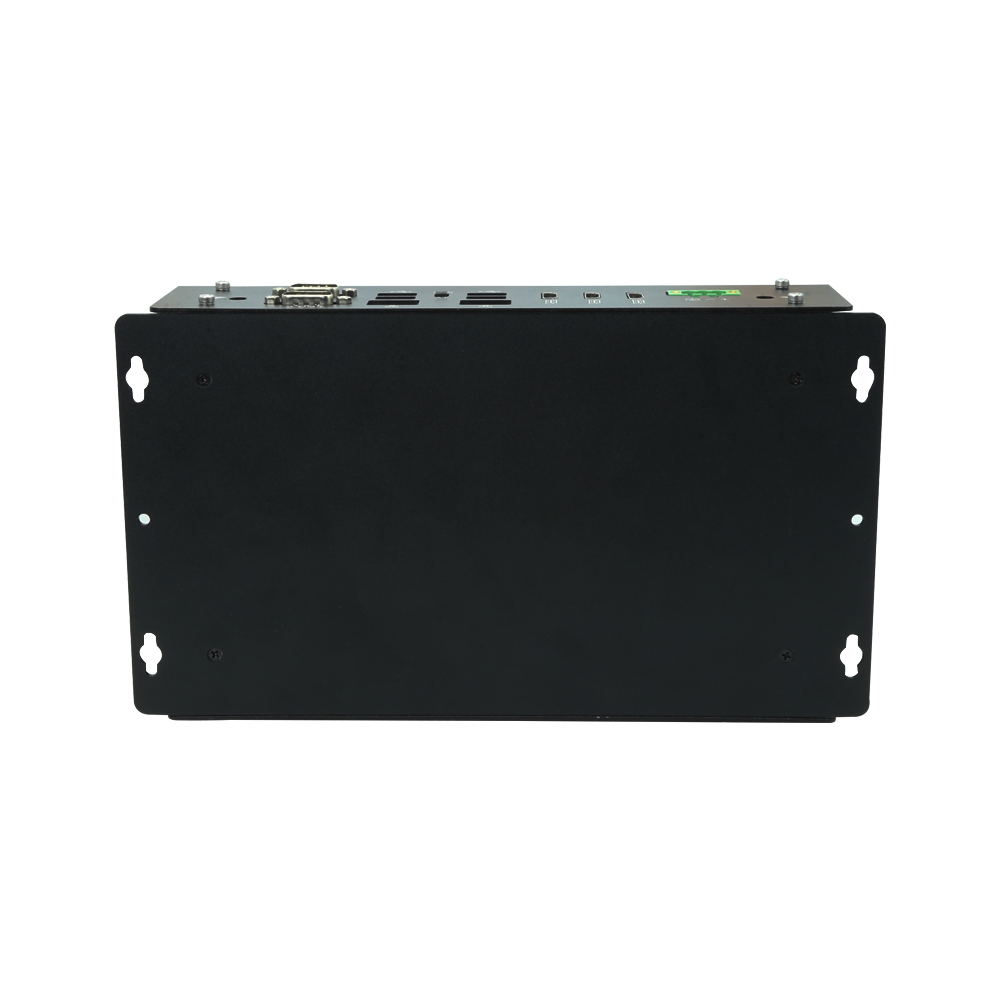

Mounting	4 Mounting holes on case
Cooling Mode	Fanless, without a cooling fan

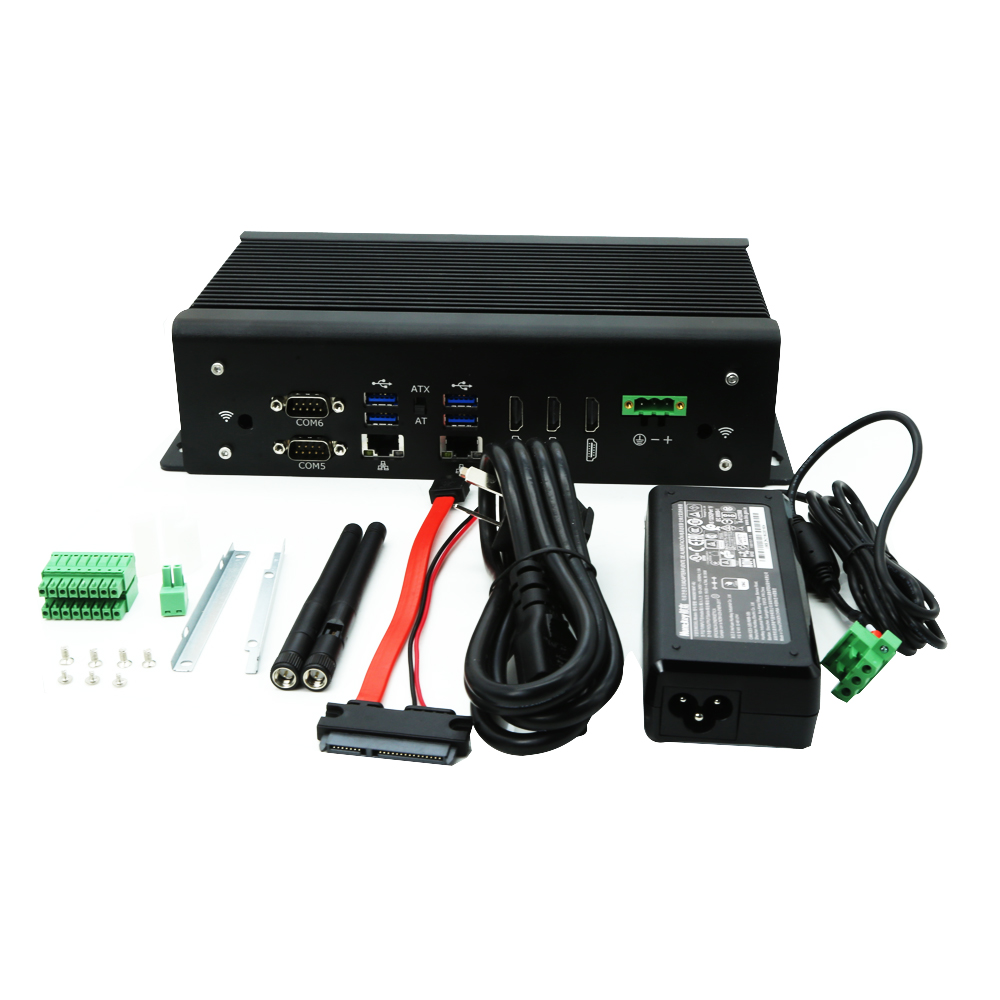

Package Content：
Standard	1xMini PC, 1xPower Adapter, 1xPower Cord, 1xScrews Bag
