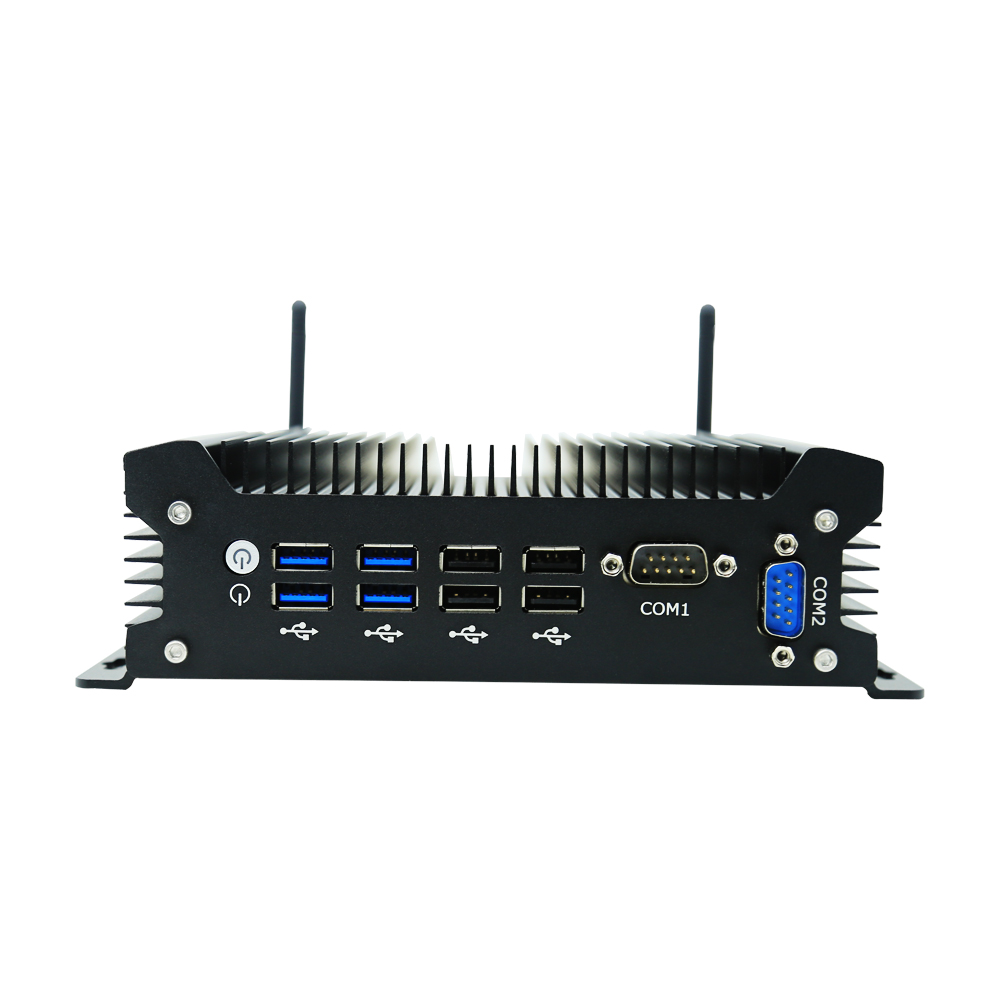

Dual LAN Industrial PC GT1200
Industrial Computers are ruggedly designed to smoothly integrate into connected industrial automation control systems.
Fanless design and rich I/O compatibility present durable, scalable industrial IoT compute solutions for faster processing and connectivity.
Applications include industrial robotics, factory automation, defense, maritime, surveillance, smart city, and more
Fanless design and rich I/O compatibility present durable, scalable industrial IoT compute solutions for faster processing and connectivity.
Applications include industrial robotics, factory automation, defense, maritime, surveillance, smart city, and more
Products Features
- Optiononal Intel 4/6/7/8/10th Gen Core i3/i5/i7 CPU.
- 2 x RJ45 Intel Giga LAN + 2 x DB9 232 COM.
- Support VGA + HDMI 1.4 dual display output synchronously.

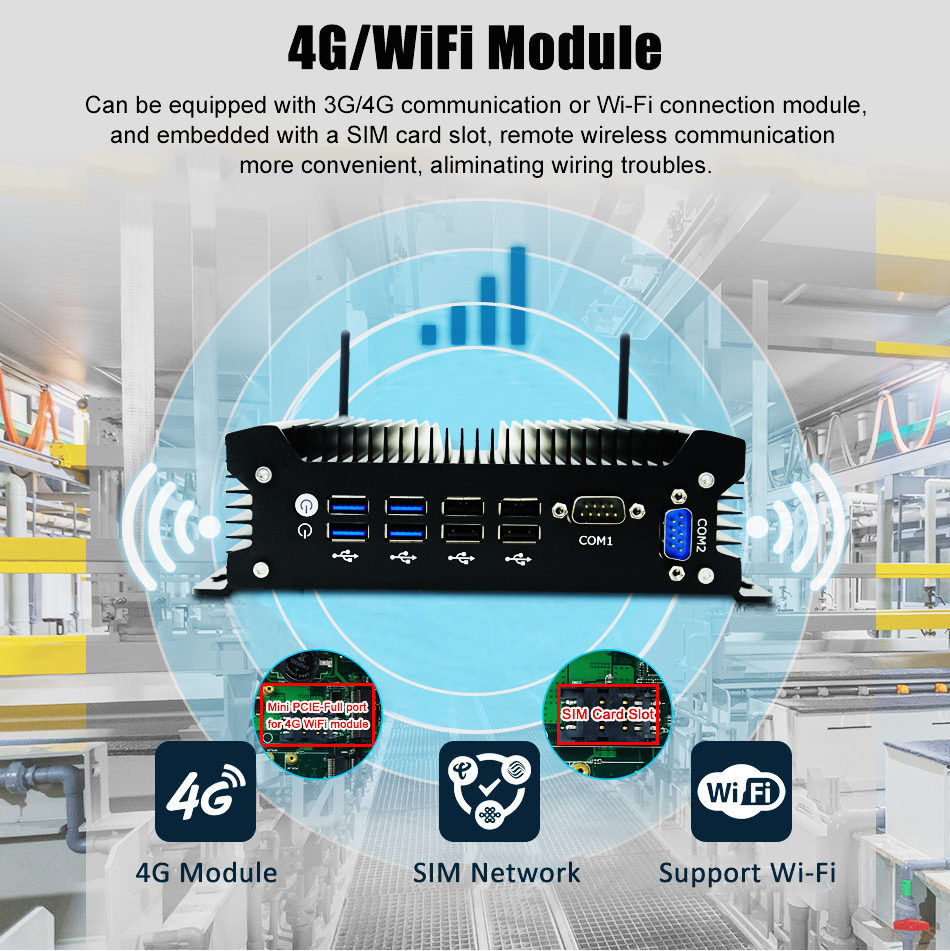

- One embedded SIM card slot onboard for 3G/4G Wi-Fi.
- Full Aluminum Alloy Black color shell for heat dissipationon, Exquisite productionon cration on
outside design.
- Fanless system without cooling fan, fit for industrial grade field, work as long as 24 hours.
- Low consumptionon TDP only 28W and can be mounted on the wall.

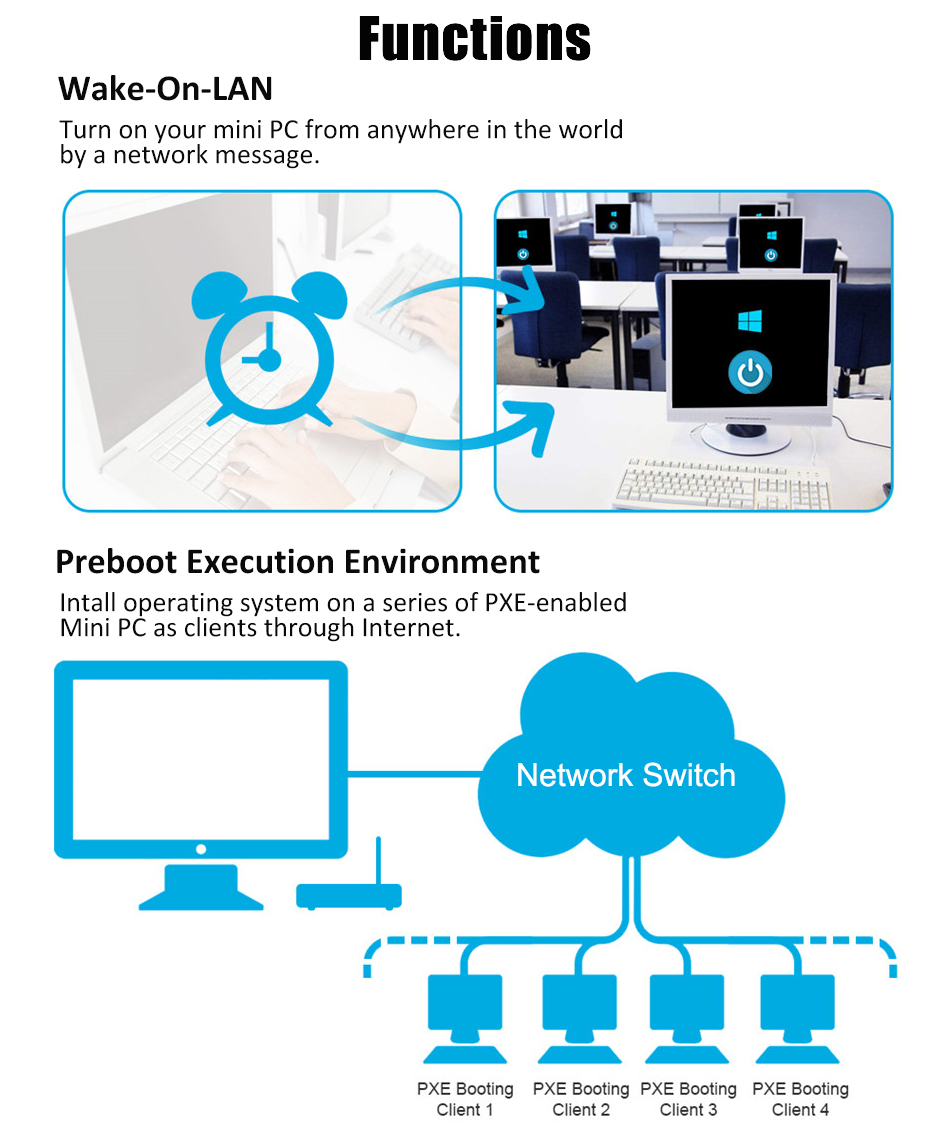

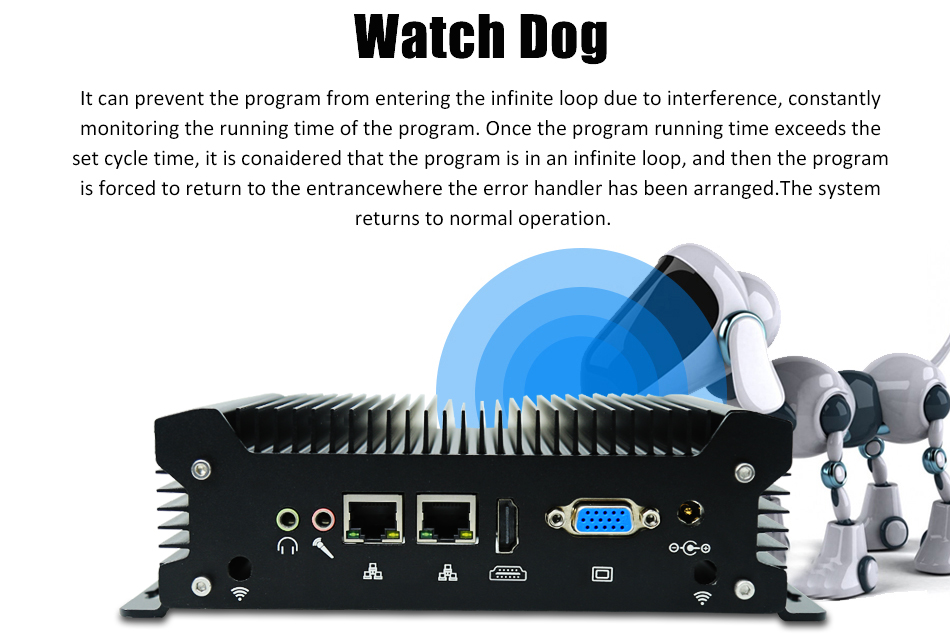

- Support AWAL, Wake On LAN, Watchdog, RTC functionons.
Products Specification
| Basic Information: | |||
| CPU | 1.Onboard Intel Skylake 14nm CPU Intel Core i3-6157U 2.4GHz (Turbo boost Technology) Dual Cores Four Threads 3MB cache TDP 28W Intel® Iris® Graphics 550. |
||
| 2. Onboard Intel Haswell 22nm CPU Intel Core i5-4278U 2.6GHz Max 3.1GHz (Turbo boost Technology) Dual Cores Four Threads 3MB cache TDP 28W Intel® Iris® Graphics 5100 | |||
| 3.Onboard Intel Kaby Lake 14nm CPU Intel Core i5-7287U 3.3GHz Max 3.7GHz (Turbo boost Technology) Dual Cores Four Threads 4MB cache TDP 28W Intel® Iris® Plus Graphics 650. | |||
| 4.Onboard Intel Haswell 22nm CPU Intel Core i7-4578U 3.0GHz Max 3.5GHz (Turbo boost Technology) Dual Cores Four Threads 4MB cache TDP 28W Intel® Iris® Graphics 5100. | |||
| TDP | 28W | ||
| Chipset | Intel Sunrise Point-LP, Intel Skylake-U | ||
| Memory | 4th: 1 x SO-DIMM DDR3L Slot, Support 4GB/8GB 6th/7th/8th: 1 x SO-DIMM DDR4 Slot, Support 4GB/8GB/16GB/32GB 8th/10th: 2 x SO-DIMM DDR4 Slot, Support 4GB/8GB/16GB/32GB/64GB |
||
| OS | Windows 7/Windows 8/Windows 10/Linux | ||
| Audio | Intel High Definition Audio and USB Audio and HID | ||
| Network | 2 x Onboard Realtek RTL8111 Gigabit Ethernet NIC 10/100Mbps/1000Mbps BaseT LAN |
||
| Video | Refer to the above CPU | ||
| Storage: | |||
| SSD | 4th: 1 x M-SATA3.0 slot for MSATA SSD, support 6Gb/s 6th/7th/8th/10th: 1 x M.2 slot for NVME/NGFF 2280 SSD |
||
| SATA | 1 x SATA3.0 slot for SATA HDD or SSD, support 6Gb/s,320G/500G/1TB/2TB (Optional) | ||
| Wi-Fi: | |||
| Module | 1 x mini PCIE-full/mini PCIE-half port for Wi-Fi/Bluetooth module 1 x mini PCIE-half/full port for 3G/4G module |
||
| Antenna | 2 x inner RF cables and 2 x external antennas | ||

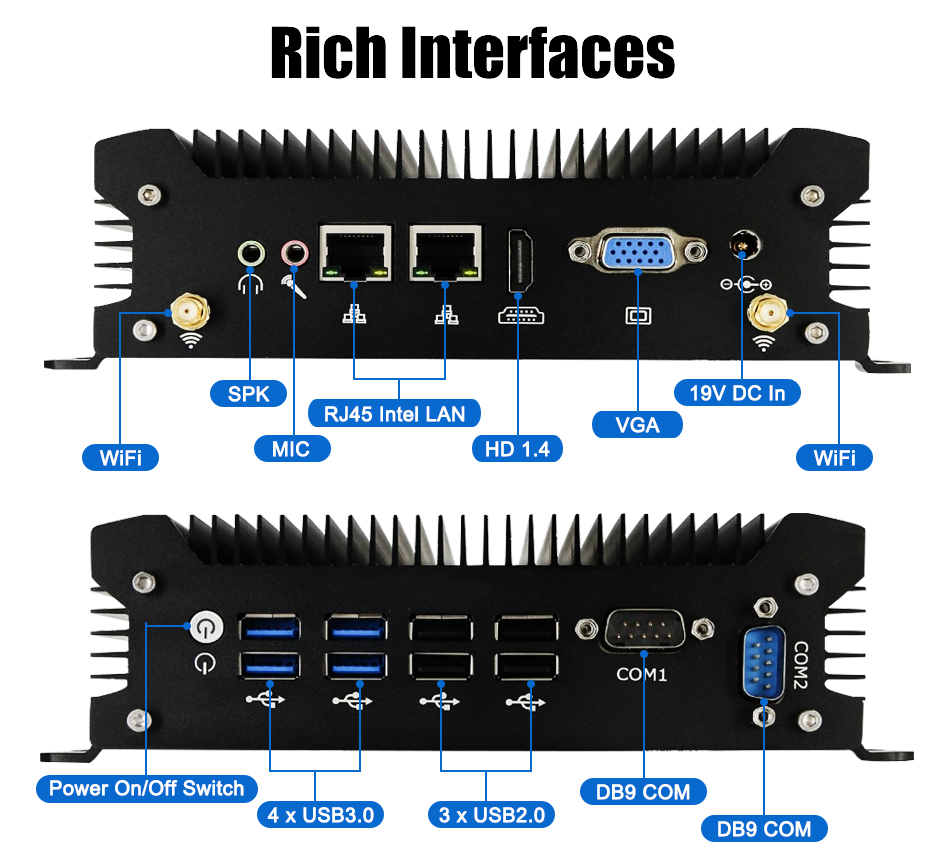

| Input/output port： | |||
| Switch | 1 x Power On/Off Switch | ||
| Power | 1 x 12V-19V DC In | ||
| COM | 2 x DB9 RS232 COM | ||
| USB | 4 x USB2.0, 4 x USB3.0 | ||
| Display | 1 x VGA, 1 x HDMI 1.4 | ||
| LAN | 2 x RJ45 Giga LAN | ||
| 4G Module | 1 x mini PCIE-full port for 3G/4G module | ||
| SIM | 1 x embedded SIM card slot onboard | ||
| Audio | 1 x MIC, 1 x SPK | ||
| Power and Working Environment: | |||
| Input | DC100-240V AC/50-60Hz | ||
| Output | DC+12V~+19V, recommend 12V/5A | ||
| Operating Temperature | -20°C/+60°C Centigrade | ||
| Storage Temperature | -30/+70 Centigrade | ||
| Relative Humidity | 10%~90%@30°C(non-condensing) | ||
| Product Dimension & Details: | |||
| Functions | AWAL, Wake On LAN, RTC, Watchdog | ||
| Size | 193.9*127*57.2mm | ||
| Weight | Net 1kg, Gross 1.5kg | ||
| Shell | Black color aluminum alloy(any customized color for bulk order) | ||
| Mounting | 4 Mounting holes on case | ||
| Cooling Mode | Fanless | ||
| Package Content： | |||
| Standard | 1xMini PC, 1xPower Adapter, 1xPower Cord, 1xScrews Bag | ||
