6LAN Fan Firewall Appliance PC GT6L
6*Onboard Intel 82574 10 / 100 / 1000 LAN,RJ45, 4 x USB3.0, 1* RJ45 COM support RS232，1* HDMI
Support AES-NI, ESXI, PVE, Watchdog, Auto power on, RTC, PXE boot, Wake-on-LAN etc.
Mini Computer for firewall appliance router pc. Compact, space-saving, fanless design, zero noise disturbance, low power consumption and energy saving
Support AES-NI, ESXI, PVE, Watchdog, Auto power on, RTC, PXE boot, Wake-on-LAN etc.
Mini Computer for firewall appliance router pc. Compact, space-saving, fanless design, zero noise disturbance, low power consumption and energy saving
- Products Features
- -6*Onboard Intel 82574 10 / 100 / 1000 LAN,RJ45,4xUSB3.0,1xRJ45 COM console.
- -2xDDR4 SODIMM non-ecc ram slot, max support 64GB.
-Support two storage: 1xMsata+1x2.5''SATA SSD/HDD.
-1xHD-MI support dual 4K@60Hz UHD video display.
-1xMPCIE wireless slot, support WiFi/3G/4G(3 choose 1) connection.
-Support AES-NI, ESXI, PVE, Watchdog, Auto power on, RTC, PXE boot, Wake-on-LAN etc.

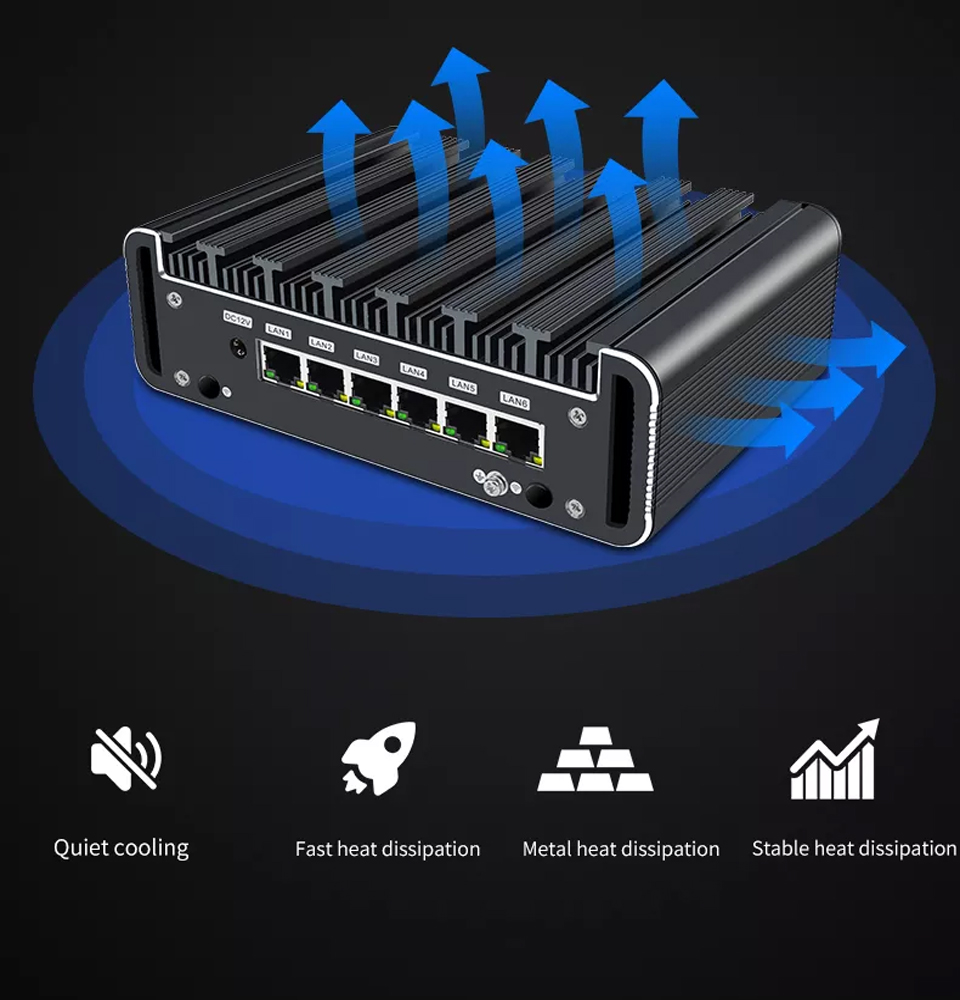

-Fanless Aluminum Alloy solid-built shell to help heat dissipation,excellent cooling performance.
-Motherboard Fanless system attached heat sink,work as long as 7x24 hours*365Days.
-Low consumption TDP and can be mounted back of monitor by VESA bracket(optional). -
Products Parameter
-
Basic Information: CPU 1.Intel Celeron 3867U@1.8Ghz, Dual core, 4 threads, 2MB Cache
2.Intel Celeron J4125@2.0GHz up to 2.7Ghz, Quad core, 4 threads, 4MB Cache
3.Intel® Core i3-7100U @2.4GHz, Dual core, 4 threads, 3MB Cache
4.Intel® Core i5-7200U @2.5GHz up to 3.1Ghz, Dual core, 4 threads, 3MB Cache
5.Intel® Core i5-8250U @1.6GHz up to 3.4Ghz, Quad core, 8 threads, 6MB Cache
6.Intel® Core i7-7500U @2.7GHz up to 3.5Ghz, Quad core, 4 threads, 4MB Cache
7.Intel® Core i7-8550U @1.8GHz up to 4.0Ghz, Quad core, 8 threads, 8MB CacheTDP 15W Motherboard Size 120 x 120 mm customized size BOIS AMI BIOS, ACPI supported Chipset Intel Kaby Lake Memory 2*SODIMM memory slot 4GB/ 8GB/ 16GB/32GB RAM DDR4 OS Windows 7/Windows 8/Windows 10/Linux/pfSense Network 6*Onboard Intel 82574 10 / 100 / 1000 LAN,RJ45 Video Intel HD Graphics Storage: MSATA 1 x M-SATA3.0 slot for MSATA SSD 64GB/128GB/256GB/512GB/1TB optional (Transmission rate up to 600Mbps ) SATA 1* 2.5inch SATA HDD 500GB/ 1TB (5200RPM /7200 PRM) Wi-Fi: Module 1 x mini PCIE-half port for Wi-Fi module Antenna 2 x inner RF cables and 2 x external antennas Input/output port： Switch 1 x Power On/Off Switch Power 1 x 12V DC In LED 1 x Power LED, 1 x HDD LED USB 4 x USB3.0 Display 1* RJ45 COM support RS232+1* HDMI LAN 6*Intel 82574 10 / 100 / 1000 LAN,RJ45 Audio 1 x MIC, 1 x SPK RST 1 x RST WIFI Dual band 2.4GHz/5.0GHz Power and Working Environment: Input DC100-240V AC/50-60Hz Output DC+12V~+19V, recommend 12V/5A Operating Temperature -20/+60Centigrade Storage Temperature -20/+70 Centigrade Relative Humidity 0%~90%@30 (non-condensing) Product Dimension & Details: Functions Auto power on, Wake-On-LAN, PXE Size 178*123*55mm Weight Net 1kg, Gross 1.2kg, 2KG/full units Shell Black color aluminum alloy Mounting Can be mounted back of monitor or wall by optional VESA mount Cooling Mode Fanless Package Content： Standard 1xMini PC, 1xPower Adapter, 1xPower Cord, 1xScrews Bag Optional 1xUser Manual, 1xVESA mount
