10.1inch Windows Panel PC
industrial tablet PCs pay more attention to stability in different environments, and require stability in harsh environments, such as dustproof, waterproof, and anti-static.JIERUICC industrial tablet pc fully meets the above requirements.
Products Features
- 1. Intel Celeron Quad Core J1900 CPU
- 2. 2GB RAM & 32GB Industrial SSD
- 3. Supports Win7/8/10, Linux (32Bit, 64Bit)
- 4. 10-Finger-Multi Touch Capacitive Touch Panel
- 5. Working temperature: -10°C ~ +60°C
- 6. IP65 grade standard water-proof,dust-proof for front panel
- 7. 365 days*24hours working for all-weather
- 8. 10mm enhanced display panel, stronger impact resistance
- 9. Support embedded, wall-mounted, rack-mounted, desktop, cantilever support
- VESA 75/100 Mounting
- 10. 2 years guarantee
[Long Service Life] JIERUICC industrial panel computers have the characteristics of airtightness, low power consumption, fanless design, which can ensure that the failure and maintenance time is minimized and simplified, and the service cycle is maximized.
[Faster Running Speed] Equipped with Intel Core i3 i5 i7 & Celeron J1900, powerful hardware makes it run more stable. Creates smoothly experience for your visually home entertainment, Streaming video, Web Browsing, Gaming, and Work.
[High Degree of Protection] JIERUICC industrial tablet computers are mainly used in complex operating environments. They have three good protection functions, which are waterproof, dustproof and vibration-proof, and provide users with a high-level waterproof and dustproof front panel, and provide users with an IP65-level waterproof and dustproof front panel.
[Low Power Consumption] JIERUICC industrial tablet pc adopts the cooling system of LED screen and heat pipe, and the structural design of the industrial panel computer itself makes it have lower power consumption.
[Real-time Reflection of Production] In the application of industrial tablet computer, if there is a deviation or failure in the data monitored in the production process, the industrial tablet will respond and deal with it in time to prevent the loss caused by the failure in time.
[Fanless & Embedded Design] JIERUICC industrial tablet pc adopts fanless and embedded design, so there is no need to worry about connection problems. This design greatly improves the reliability of the machine and completely solves the problem of insufficient heat dissipation and life span of traditional industrial computers.
Products Specification
Screen parameters |
size |
10.1 " |
|
Resolution |
1280*800 |
|
Perspective |
85/85/85/85(L/R/U/D) |
|
colour |
Chroma: 16.7M |
|
Brightness (standard value) |
Brightness: 300 cd/m2 |
|
Contrast |
600 :1 |
|
Response time |
6.5 ms |
|
Display area |
135.36(H) X216.576(V) mm |
|
Pixel pitch (mm) |
0.1692(H) X 0.1692(V) |
|
|
|
touch screen |
Touch screen type |
Capacitive touch screen |
|
Resolution |
500DPI |
|
Input |
Handwriting or capacitive pen |
|
Surface hardness |
7H |
|
calibration |
stand by |
|
|
|

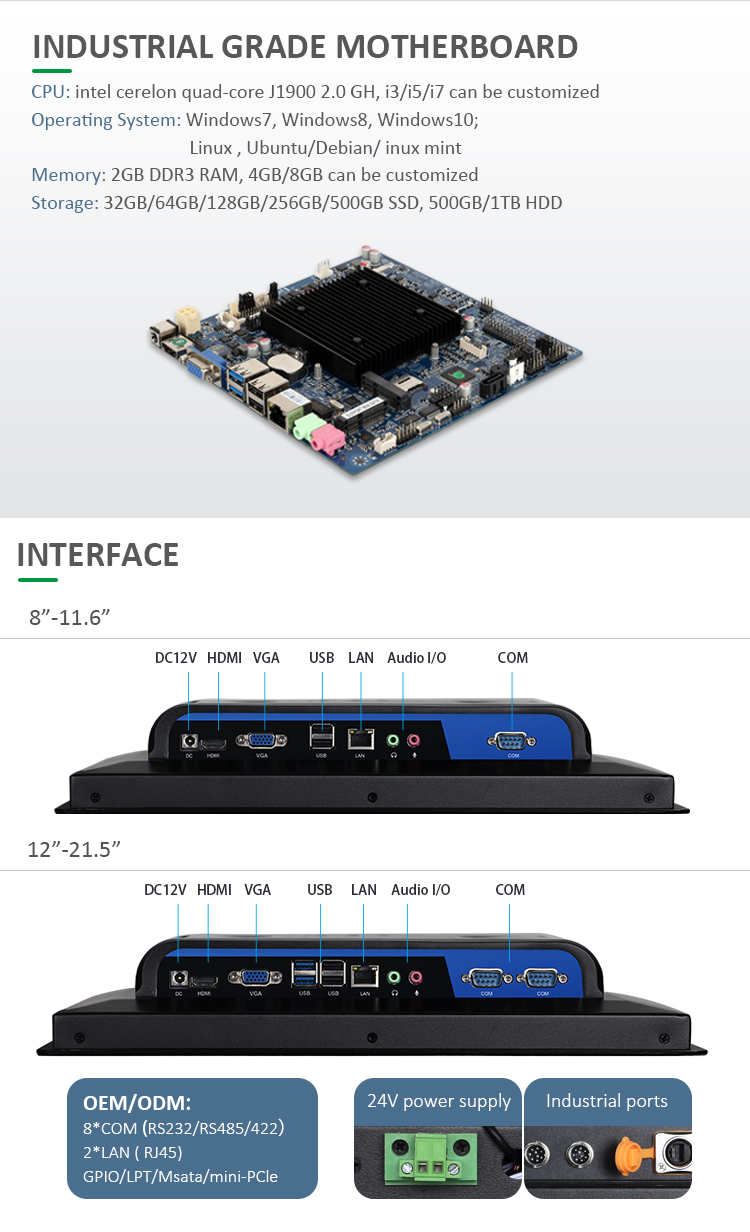

Hardware Configuration |
CPU |
Intel Celeron J1900 Quad Core 1.99G ( Max Turbo Frequency 2.4G) |
|
RAM |
DDR3 1333/1600M default 2G ( maximum support 8G ) |
|
Storage, hard disk |
SSD default 32 (64/128/256/512G (optional) |
|
chipset |
Intel HD Graphics |
|
operating system |
windows7/8/10,linux |
|
Graphics card |
HD Graphic display integrated core, support for dynamic memory allocation (DVMT), |
|
3G module |
PCI-E standard interface , support China Mobile, China Unicom, Telecom (optional) |
|
4G module |
PCI-E standard interface , support China Mobile, China Unicom, Telecom (optional) |
|
WiFi |
Dual frequency |
|
Bluetooth |
BT4.0 |
|
GPS |
Optional |
|
MIC |
Optional |
|
RTC real time clock |
stand by |
|
Timer switch |
stand by |
|
|
|
interface |
DC port |
1*DC 2.5 |
|
HDMI |
1, HDMI data output, maximum support 1080P |
|
USB2.0 |
2 |
|
USB3.0 |
/ |
|
RJ45 Ethernet |
1*Realtec8111F 1000M default single network, double network can be changed |
|
SD/TF |
Optional |
|
Headphone holder |
3.5mm standard interface |
|
SMI card |
SIM card interface standard interface supports various formats (depending on 3G module) |
|
RS232 |
2 *RS232 |
|
RS485 |
1 (choose one from 422) |
|
RS422 |
1 (choose one from 485) |
|
GPIO |
/ |
|
|
|
Product reliability |
Operating temperature |
-10°C to 60°C |
|
Storage temperature |
- 20°C to 70°C |
|
humidity |
Humidity: 95% Non-Condensing |
|
Mean time between failures (MTBF) |
7*24H |
|
|
|
power supply |
Power consumption (maximum) |
35W |
|
Power consumption (standby) |
|
|
power input |
AC 100-240V 50/60Hz passed CCC certification, CE certification |
|
Power Output |
DC12V / 5A |
|
|
|
Packing specification |
Product gross weight |
6.5KG |
|
Dimensions |
|
|
Package Size |
|

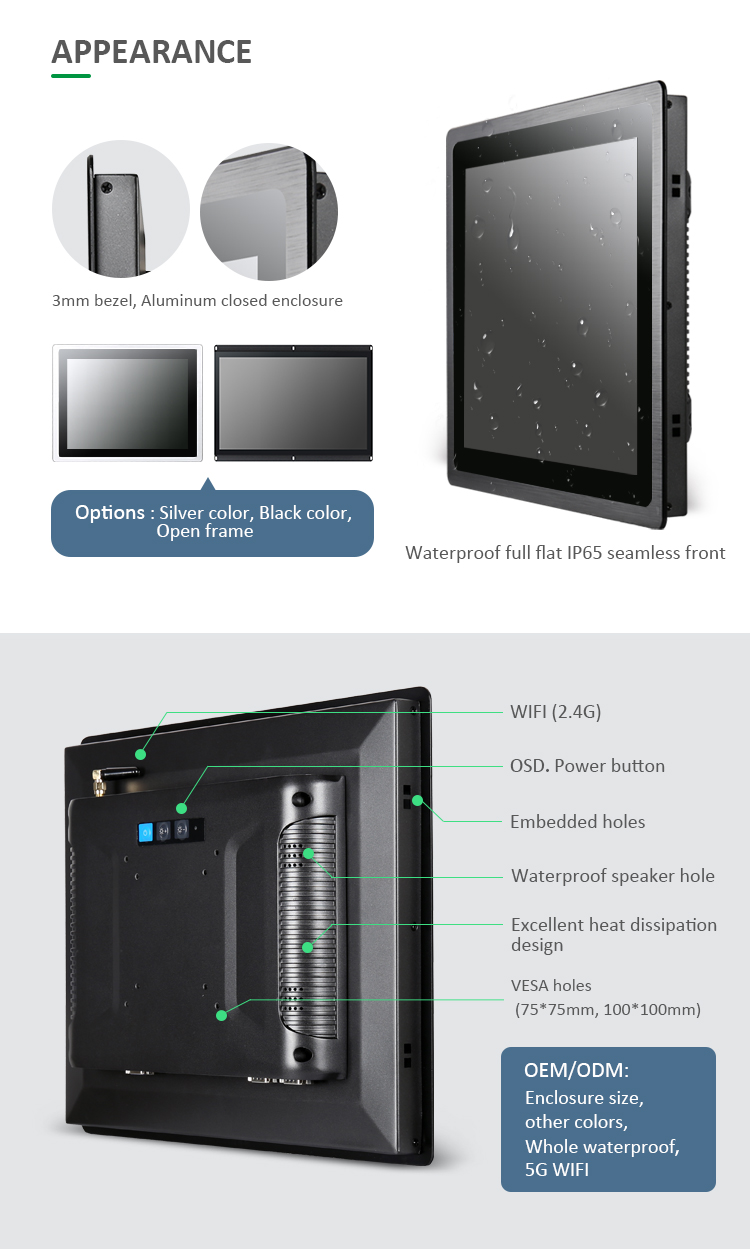

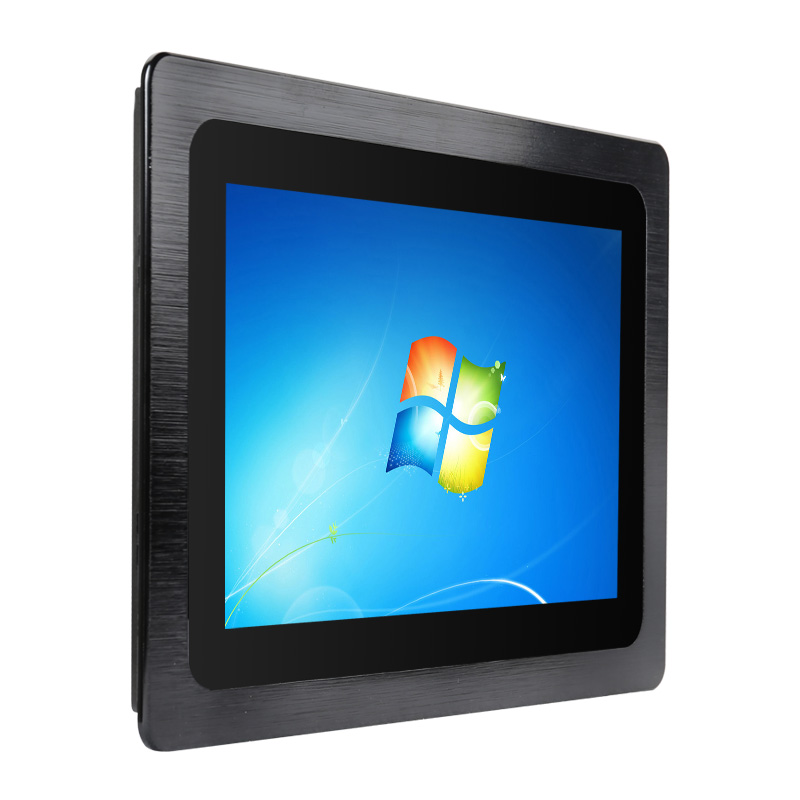

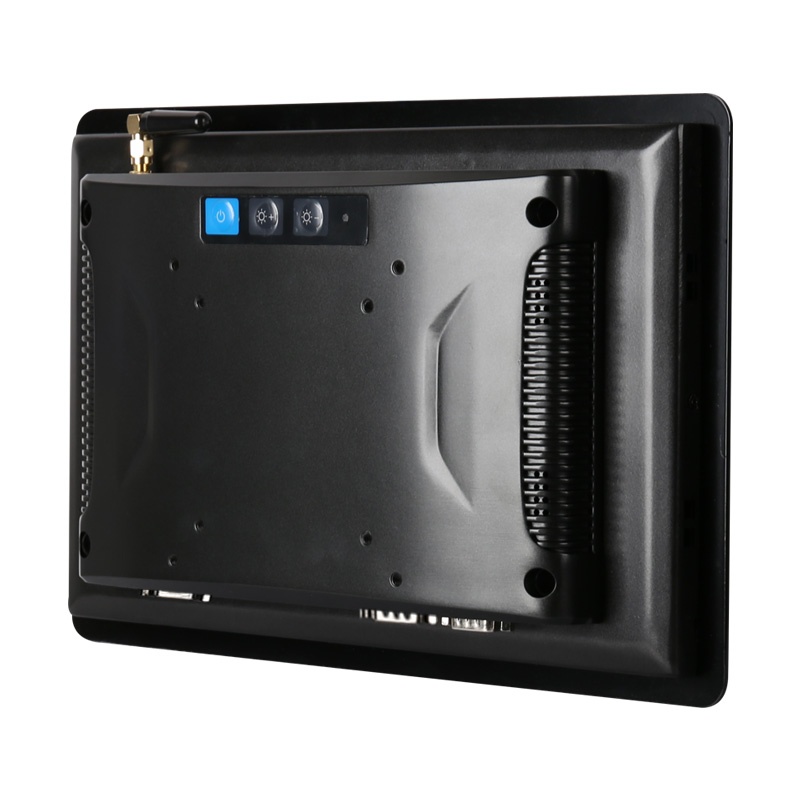

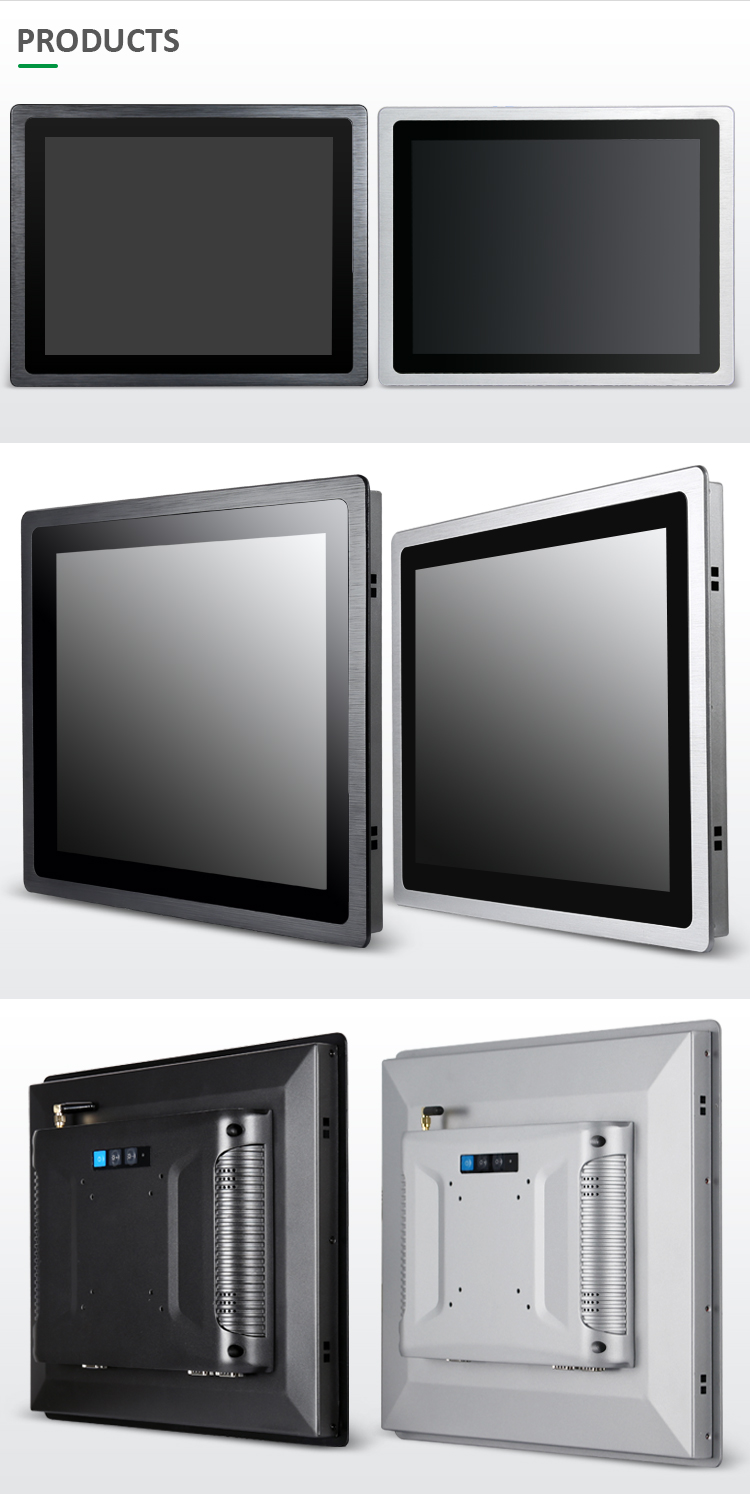

Products Images
